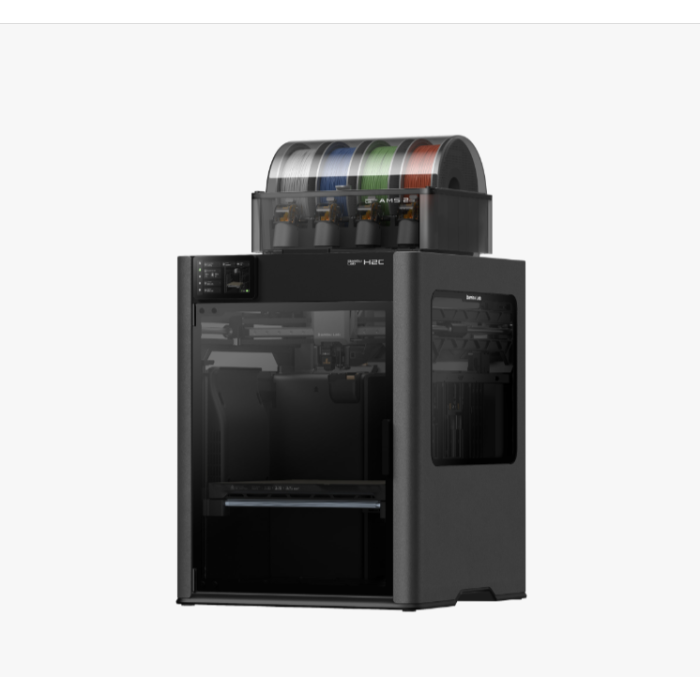

Bambu Lab H2C
Price range: $1,999.00 through $2,800.00
Product Features
- Hotend Change Multi-material Printing
- Minimal Purge Waste Multi-Color Printing
- Precise & Fast Inductive Nozzle Heating
- Close-loop Servo Extruder
- Full Filament Path AI Error Detection
- 350°C Nozzles & 65°C Active Heated Chamber
- Optional 10W/40W Laser and Cutting Module
- 330*320*325 mm³ Build Volume
* To connect more than one AMS(including AMS 2 Pro, AMS HT), a 4-in-1 PTFE Adapter (FAZ013-N) is needed.
H2C Specs
| Item | Specifications | |
| Printing Technology |
Fused Deposition Modeling
|
|
| Body | Build Volume (W*D*H) |
Single Nozzle Printing: 325*320*320 mm³ (Left)
Single Nozzle Printing: 305*320*325 mm³ (Right)
Dual Nozzle Printing: 300*320*325 mm³
Total Volume for Two Nozzles: 330*320*325 mm³
|
| Chassis |
Aluminum and Steel
|
|
|
Outer Frame
|
Plastic and Glass
|
|
| Physical Dimensions | Physical Dimensions |
492*514*626 mm³
Recommended Space for Printer: 700mm*700mm*1100mm
|
| Net Weight |
32.5 kg
(Gross Weight: H2C AMS Combo 44.7 kg; H2C Laser Full Combo-10W 49.0kg;
H2C Laser Full Combo-10W 49.5 kg)
|
|
| Toolhead | Extruder Gear | Hardened Steel |
| Nozzle | Hardened Steel | |
| Max Nozzle Temperature | 350 °C | |
| Supported Nozzle Diameter | 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm | |
|
Filament Cutter
|
Built-in
|
|
| Filament Diameter | 1.75 mm | |
| Extruder Motor | Bambu Lab High-precision Permanent Magnet Synchronous Motor | |
| Heatbed |
Build Plate Material
|
Flexible Steel Plate
|
|
Included Build Plate Type
|
Textured PEI Plate
|
|
| Supported Build Plate Type |
Textured PEI plate, Engineering Plate
|
|
| Max Heatbed Temperature | 120 ℃ | |
| Speed | Max Speed of Toolhead | 1000 mm/s |
| Max Acceleration of Toolhead | 20,000 mm/s² | |
|
Max Flow for Hotend
|
40 mm³/s
(Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
|
|
|
Chamber Temperature Control
|
Active Chamber Heating
|
Supported
|
|
Max Temperature
|
65 °C
|
|
|
Air Purification
|
Pre-filter Grade
|
G3 |
|
HEPA Filter Grade
|
H12
|
|
|
Activated Carbon Filter Type
|
Granulated Coconut Shell
|
|
|
VOC Filtration
|
Superior
|
|
|
Particulate Matter Filtration
|
Supported
|
|
|
Cooling
|
Part Cooling Fan
|
Closed Loop Control
|
|
Cooling Fan for Hotend
|
Closed Loop Control
|
|
|
Main Control Board Fan
|
Closed Loop Control
|
|
|
Chamber Exhaust Fan
|
Closed Loop Control
|
|
|
Chamber Heat Circulation Fan
|
Closed Loop Control
|
|
|
Auxiliary Part Cooling Fan
|
Closed Loop Control
|
|
|
Toolhead Enhanced Cooling Fan
|
Closed Loop Control
|
|
|
Supported Filament Type
|
PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS;Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA, PPS
|
|
| Sensor |
Live View Camera
|
Built-in; 1920*1080
|
|
Nozzle Camera
|
Built-in; 1920*1080
|
|
|
BirdsEye Camera
|
Built-in; 3264*2448 (Equipped with Laser Edition)
|
|
|
Toolhead Camera
|
Built-in; 1600*1200
|
|
| Door Sensor | Supported | |
| Filament Run Out Sensor | Supported | |
| Filament Tangle Sensor | Supported | |
| Filament Odometry | Supported with AMS | |
| Power Loss Recovery | Supported | |
| Electrical Requirements | Voltage |
100-120 VAC, 50/60 Hz
|
| Max Power* |
1250 W@110 V
|
|
|
Typical Power
|
200 W@110 V (Single Nozzle Printing PLA)
|
|
|
Please purchase the version corresponding to your region’s voltage. Using the Printer in different regions, you may need to purchase a transformer accordingly.
|
||
|
Working Temperature
|
|
10 °C-30 °C
|
| Electronics | Touchscreen |
5-inch 720*1280 Touchscreen
|
| Storage |
Built-in 8 GB EMMC and USB Port
|
|
| Control Interface | Touchscreen, mobile App, PC App | |
|
Motion Controller
|
Dual-core Cortex-M4 and Single-core Cortex-M7
|
|
|
Application Processor
|
Quad-core ARM with NPU
|
|
| Software | Slicer |
Bambu Studio
Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.
|
| Supported Operating System |
MacOS, Windows, Linux
|
|
|
Network Control
|
Ethernet
|
Not Available
|
|
Wireless Network
|
Wi-Fi
|
|
|
Network Kill Switch
|
Not Available
|
|
|
Removable Network Module
|
Not Available
|
|
|
802.1X Network Access Control
|
Not Available
|
|
| Wi-Fi | Operating Frequency |
2412 – 2472 MHz, 5150 – 5850 MHz (FCC/CE)
2400 – 2483.5 MHz, 5150 – 5850 MHz (SRRC)
|
| Wi-Fi Transmitter Power (EIRP) |
2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC)
5 GHz Band3: <30 dBm (CE); <24 dBm (FCC)
5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)
|
|
| Wi-Fi Protocol | IEEE 802.11 a/b/g/n | |
What’s in the box
| H2C AMS Combo | H2C Laser Full Combo | |
|---|---|---|
|
H2C
|
1 | – |
|
H2C Laser Edition
|
– | 1 |
|
Build Plate
|
1 | 1 |
|
Spool Holder
|
1 | 1 |
|
0.4mm Induction Hotend
|
4 | 4 |
|
0.2mm Induction Hotend
|
1 | 1 |
|
0.6mm Induction Hotend
|
1 | 1 |
|
0.4mm Hardened Steel Hotend
|
2 | 2 |
|
0.2mm Stainless Steel Hotend
|
– | – |
|
0.6mm Hardened Steel Hotend
|
– | – |
|
4-in-1 PTFE Adapter II
|
1 | 1 |
|
Accessory Box
|
1 | 1 |
|
AMS 2 Pro
|
1 | 1 |
|
AMS HT
|
– | – |
|
10W Laser Module
|
– | depending on option |
|
40W Laser Module
|
– | depending on option |
|
Cutting Module (with Pen holder)
|
– | 1 |
|
Laser Platform
|
– | 1 |
|
Cutting Platform
|
– | 1 |
|
Emergency Stop Button
|
– | 1 |
| 3D Printer | H2C AMS Combo (Standard), H2C Laser Full Combo (10W Laser), H2C Laser Full Combo (40W Laser) |
|---|
